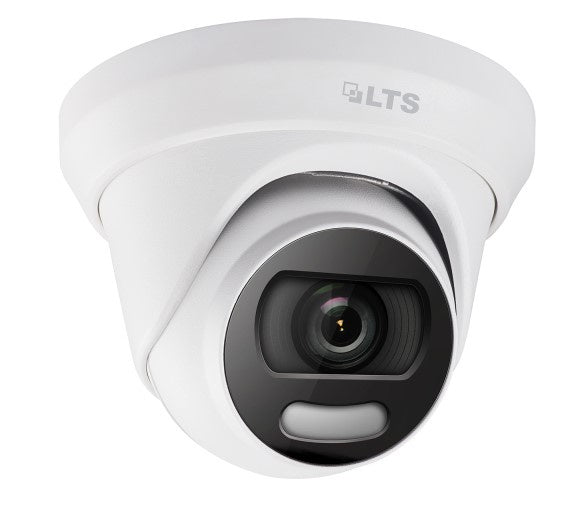

Platinum 5 MP Fixed HD-TVI Turret Camera
Platinum, Color 24/7, HD-TVI, 5 MP, Turret, 2.8 mm Fixed Lens, 0.0005 Lux @ f 1.0, Clear White LEDs up to 65 ft, True WDR 120 dB, TVI / AHD / CVI / 960H Switchable, IP67, Color 24/7
- 5 MP, 2560 x 1944 resolution
- Color imaging 24/7
- 2.8 mm fixed lens
- 0.0005 Lux @ f1.0
- Up to 66 ft(20 m) white light distance
- 3D DNR, true WDR
- 4-in-1 video output (switchable among TVI / AHD / CVI / CVBS)
- IP67
- OSD menu via UTC technology with Platinum DVR
| Specifications |
|
Camera
|
|
Image Sensor
|
5 MP CMOS
|
|
Resolution
|
2560 (H) × 1944 (V)
|
|
Frame Rate
|
5 MP @ 20 fps
|
|
Min. illumination
|
0.0005 Lux @ (f1.0, AGC on), 0 Lux with supplemental light
|
|
Shutter Speeds
|
PAL: 1/25 to 1/50, 000 sec.
NTSC: 1/30 to 1/50, 000 sec.
|
|
Slow Shutter
|
Max. 16 times
|
|
Lens
|
2.8 mm fixed lens
|
|
Field of View
|
2.8 mm, horizontal: 104°, vertical: 54°, diagonal: 126°
|
|
Lens Mount
|
M16
|
|
Day & Night
|
Color
|
|
Wide Dynamic Range (WDR)
|
120 dB
|
|
Angle Adjustment
|
Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°
|
|
Menu
|
|
Image Mode
|
STD / HIGH SAT
|
|
AGC
|
Yes
|
|
White Balance
|
Auto / Manual
|
|
HLC
|
Yes
|
|
Backlight Compensation (BLC)
|
Yes
|
|
Privacy Mask
|
4 programmable privacy masks
|
|
Motion Detection
|
4 programmable areas
|
|
WDR
|
Yes
|
|
Functions
|
Brightness, Sharpness, 3D DNR, Mirror, Smart light
|
|
Interface
|
|
Video Output
|
Switchable among TVI / AHD / CVI / CVBS
|
|
General
|
|
Operating Conditions
|
-40° to 140° F (-40° to 60° C), humidity: 90% or less (non-condensing)
|
|
Power Supply
|
12 VDC ± 25%
*LTS recommends using only one power adapter for each camera.
|
|
Power Consumption
|
Max. 3 W
|
|
Protection Level
|
IP67
|
|
Material
|
Main Body: Metal Mounting Base: Plastic
|
|
Supplemental Light
|
White; range up to 66 ft (20 m)
|
|
Dimensions
|
Ø 4.32 × 3.37" (Ø 109.82 × 85.56 mm)
|
|
Weight
|
Approx. 0.74 lb (336 g)
|
|
| Video |
|
| SKU |
IQLTCMHT1752W-28CF |
| Camera Technology |
HD-TVI |
| Product Lines |
Platinum |
| Camera Housing |
Turret |
| Camera Resolution |
5.0MP |
