RF Signal Detector (Model: IQV70 Item#10280)

The IQV70 Advanced Cameras/GPS/GSM Bug Detector is a multiple mode Detector that can be used to locate hidden cameras, GPS Trackers, listening devices, Wi-Fi, Bluetooth, FM, and more. It uses a camera lens finder to pinpoint the exact location of the camera lens. It also has a frequency scanner to scan for different frequencies ranging from 1 MHz to 12 GHz. The Advanced Bug Detector also has an attachment to scan for magnetic trackers that can be placed in hard-to-reach places.

Features

Detects all types of RF transmissions including analog and digital, audio and video

Frequency range 1 MHz – 12 GHz

High sensitivity for searching 2G~5G Mobile signals and wireless protocols (Wi-Fi, Bluetooth, etc.)

Adjustable alarm threshold

Portable, reliable and easy-to-use

Rechargeable Li-Ion battery with resource of 20 hours

Widest Handheld RF Detection Range (1 MHz - 12 GHz)

Precise Antennas provide increase detection sensitivity

Detects wireless hidden cameras

Detects wireless hidden microphones

Detects sources from GPS, WiFi, Bluetooth, GSM, 3G, and 4G/LTE,5G

3.Simultaneous Detection

Functions and how to work the unit

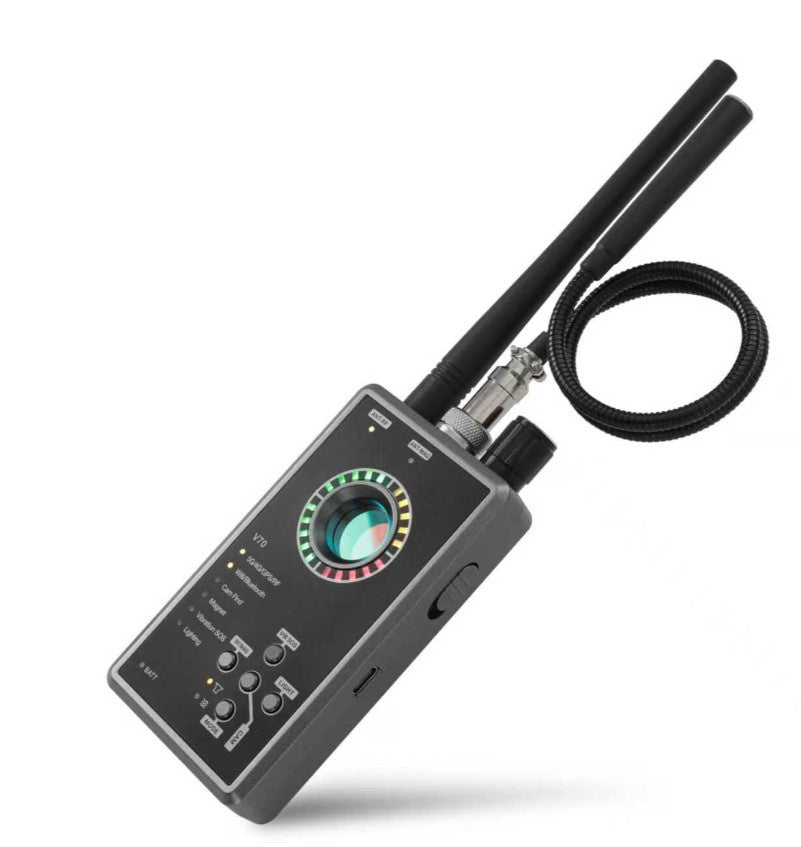

The device is handheld: the left side of the top is the antenna, and the middle is the magnetic probe. The right side is the sensitivity adjustment knob: turn clockwise to increase sensitivity and counterclockwise to decrease it.

Power: On the right side of the device body is the ON/OFF power switch.

When powered on, the Battery signal light shows green under normal battery level; when low on power, it turns red and needs to charge

● RF/MAG Button

1. After power-on, the device is initially in wireless communication RF detection mode, with the corresponding ANT-RF signal light on. It detects GPS, GSM, 3G, 4G, 5G, WIFI, and Bluetooth, walkie-talkie, 2.4G and RF signal bands.

2. Short-press RF/MAG once to switch the device to magnetic detection mode, with the corresponding ANT-MAG signal light on. Attach the magnetic probe accessory—the top of the probe shows blue light. When a magnet is detected, the top of the probe turns white and the device sounds an alarm.

● MODE Button

The device defaults to buzzer alarm mode after power-on, with the corresponding speaker symbol signal light on. Short-press MODE Button once .It switches to vibration mute mode, with the vibration symbol signal light on.

● CAM Button

Camera Finder Mode (wired and wireless WIFI cameras). Short-press CAM Button: the red LED starts blinking slowly, and the wireless IR function turns on (wireless IR detection can find hidden cameras with infrared night vision in dark environments, within a detection distance of up to 10 meters). Short-press CAM button twice: the red LED blinks faster (IR detection remains on). Short-press three times: the red LED blinks at the fastest speed (IR detection remains on). Short-press four times: the red LED turns off; while IR detection is still on to detect hidden night vision cameras in darkness.

● LIGHT Button

For lighting Mode: Short-press Light button once to turn on 2 white LED lights. Adjust the light intensity via the Sensitivity Knob

● Sensitivity Knob

It has four functions: 1) adjust the sensitivity of signal detection distance; 2) adjust the sensitivity of IR detection distance; 3) adjust the strength of vibration detection sensitivity;4) adjust the brightness of the flashlight.

● VIB SOS Button

After power-on, short-press VIB SOS Button, switch the device to vibration detection mode. Adjust sensitivity via the Sensitivity knob according to the 20-grid signal indicator (20 grids for maximum sensitivity, 1 grid for minimum). After setting sensitivity, leave the device for 5 seconds—all signal lights turn off automatically, and the device enters into vibration alarm detection mode. When the device is moved or hit, it sounds an alarm (short-press VIB SOS to reset and re-enter detection mode); the alarm automatically resets after 3 minutes to re-enter detection mode. Vibration detection is low-power consumption, with a battery standby up to half a year.

● The 20-level LED signal intensity indicator shows signal strength from weak to strong: 10 green levels (low), 5 yellow levels (medium), and 5 red levels (high). An alarm or vibration is triggered when the signal reaches the 16th level (red).

● A Type-C charging port is on the right side of the device. The Battery indicator blinks red when charging and stays green when fully charged

Specification

Probe dynamic Range ：>79DB

Detection Sensitivity：≤ 0.03mv

Frequency range：

CDMA 824-849 MHz

GSM 880-920 MHz

GSM (DCS) 1710-1790 MHz

 WCDMA, 3G, GSM (PCS), DECT 1920-2000 MHz，4G 2100 MHz ,2600 MHz ,5G

Bluetooth, Wi-Fi 2400-2480 MHz

Wi-Max 3000-7000 MHz

Power: Rechargeable Li-Ion 2000mAh @ 3.7v

Operation Duration: up to 20 Hours

Charge Time: 4 hours

Charge Port: Type C

Threshold settings: 17 steps

Working Modes: Silent, Audio, Alarm

Operating Temp: 14-113°F

Working current: 60~110mA

Material: Plastic

Weight: 200g

Volume: 2 X 7 X 11.5 cm

Package includes

• IQV70 Device
• 1 Antenna
• 1 Magnetic Antenna
• 1 Type C cable
