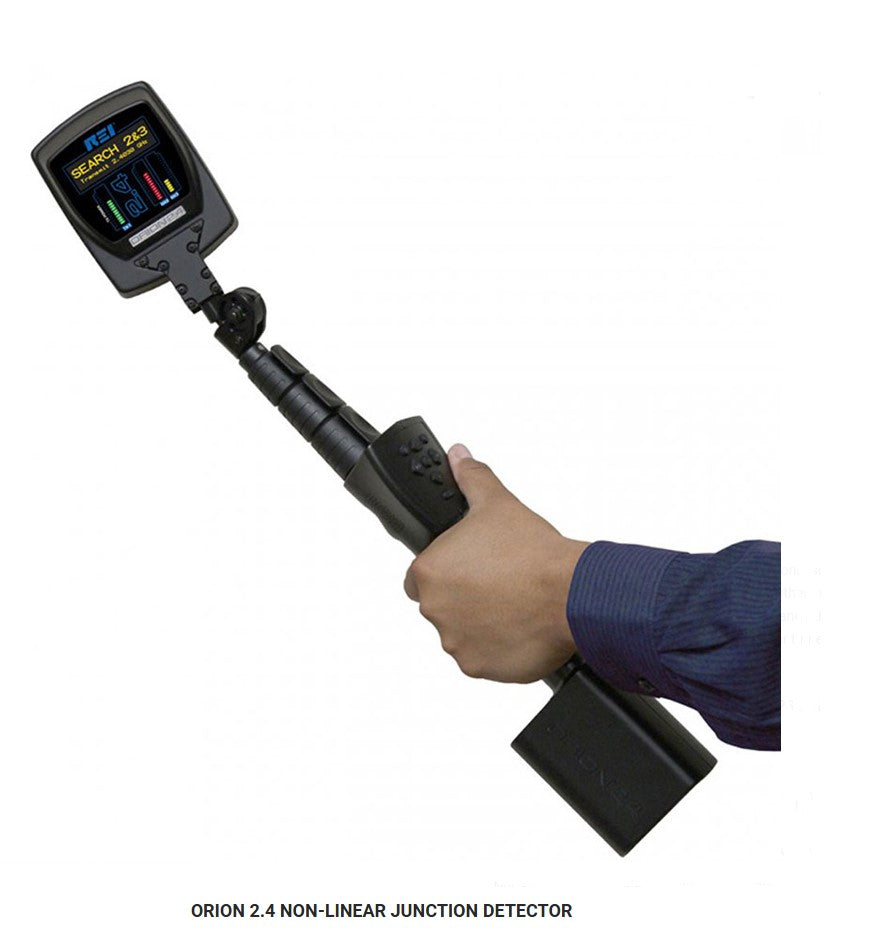

ORION 2.4 NON-LINEAR JUCTION DETECTOR HX.
(Special Order Item, allow 1 week for delivery)

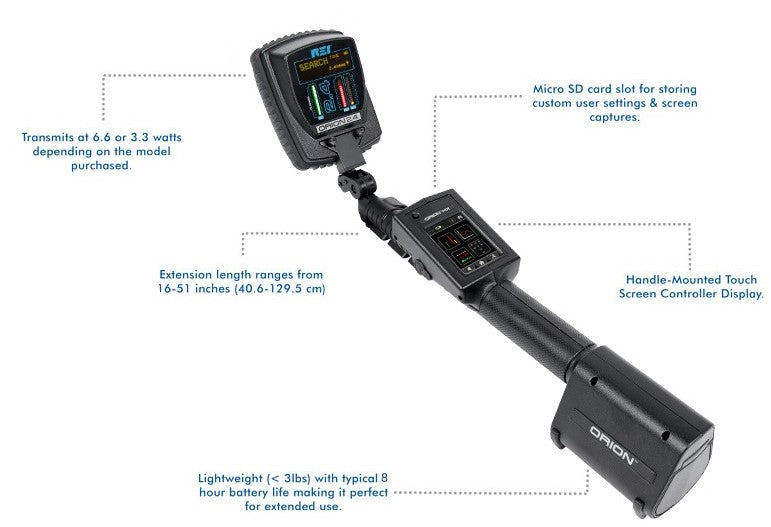

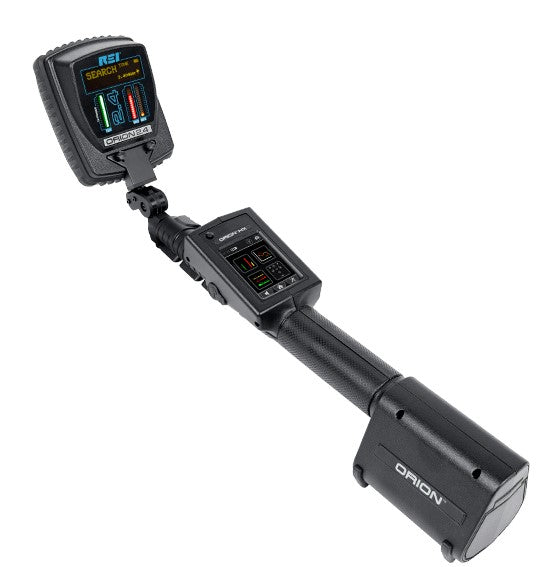

The ORION 2.4 HX Non-Linear Junction Detector (NLJD) detects electronic semi-conductor components in walls, floors, ceilings, fixtures, furniture, containers, or other surfaces. The ORION 2.4 HX NLJD is made to detect and locate hidden cameras, microphones, and other electronic devices regardless of whether the surveillance device is radiating, hard wired, or turned off.
Efficiency: shorter wavelength of the 2.4 GHz model does better at detecting modern, surface-mounted circuitry in normal office environments
Usability: multiple alert methods are available with a line-of-sight antenna mounted display to allow users to visualize target and display simultaneously
Portability: lightweight design is under three pounds and no assembly is required with an integrated telescoping pole.
Features
- Digitally modulated transmit signal, correlated 2nd & 3rd harmonic response, and adjustable DSP gain provide improved detection & minimize interference (patented)
- Histogram graph displays continuous history of harmonic response and power adjustment (patented)

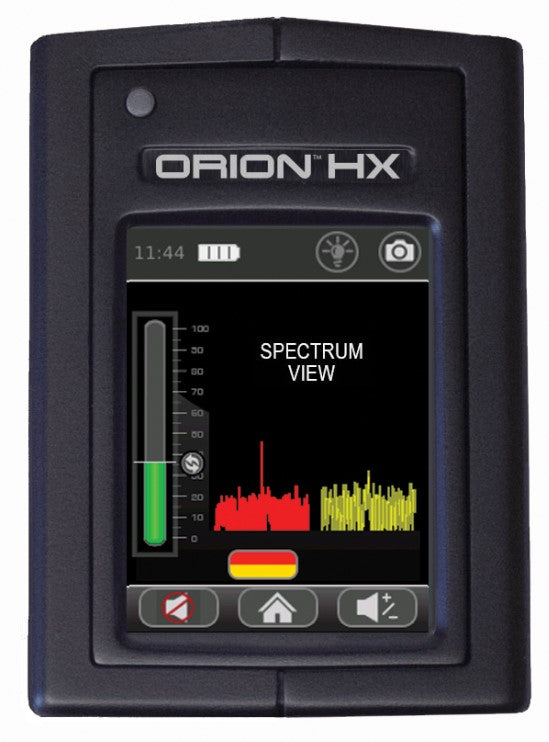

- Spectrum View (HX models) shows 2nd and 3rd harmonic spectrum graphs in several display options
- Touch screen displays the full RF spectrum for transmit, 2nd, or 3rd frequency ranges
- 1.25 MHz-wide bandwidth transmit signal increases detection sensitivity
- Alert tones and haptic (vibration) alert can be selected to alert when signal levels surpass the trip levels
- Line-of-sight antenna mounted display and LED head lamp allows user to focus eyes on sweeping target and display at same time, even in dark areas
- Small, lightweight design weighs only 2.8 lbs/1.3 kg
- No pole or cable assembly required with integrated telescoping pole
- A synthesized transceiver with frequency stability and agility to automatically search for clean operating frequencies (2.404 GHz - 2.472 GHz)
- Circularly polarized transmit and receive antenna removes the risk of missing a threat due to incorrect antenna polarization.
Applications
- Technical Surveillance Countermeasures (TSCM)
- Counter Surveillance
- Non-Linear Junction Detection
- Locating Hidden Electronics
- Locating Electronic Contraband
- Intelligence Protection
- Executive Protection
- Eavesdropping Detection
- Surveillance Equipment Detection
- Electronic Surveillance Detection
Specifications
TRANSMITTER |
| Transmit power*: 3.3 W EIRP; G model: 6.6 W EIRP Power control: Manual or auto control Frequency band: 2.404 GHz - 2.472 GHz Transmit channels: Manual or auto selection Transmit modulation: pulsing, digital spread spectrum 1.25 MHz bandwidth *G model available to entities, agencies, and persons not restricted by FCC/IC. Both power levels are CE marked for public safety and security. |
RECEIVER |
| Simultaneous 2nd & 3rd harmonic receive Digitally correlated Frequency bands:
Sensitivity: -140 dBm for both harmonics |
DISPLAY
|

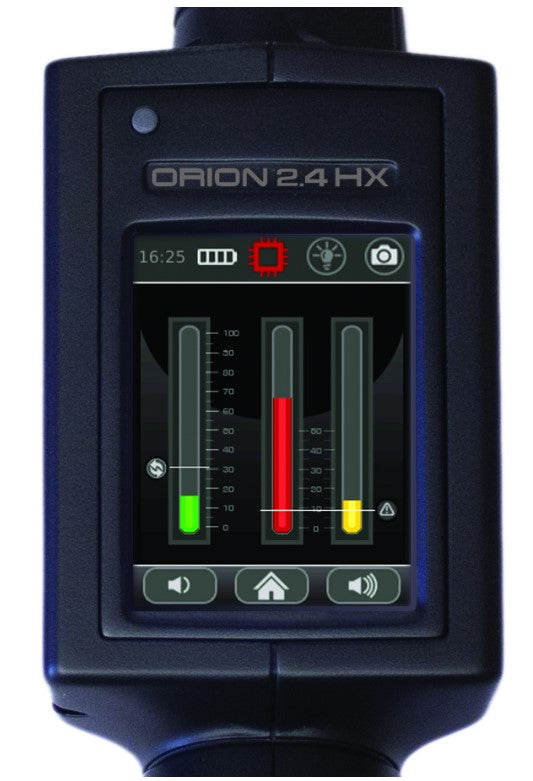

| Handle-mounted 2.7 inch touch screen controller display** Antenna-mounted display Bar graph display for transmit power level, 2nd harmonic level, 3rd harmonic level, data field display, for other information (operation mode, low battery, volume, DSP gain, etc.) **Keypad model also available |
MECHANICAL |

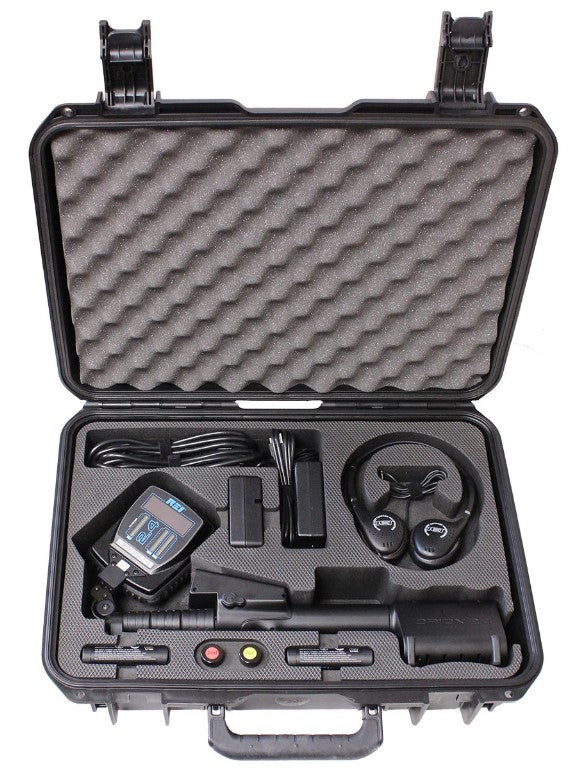

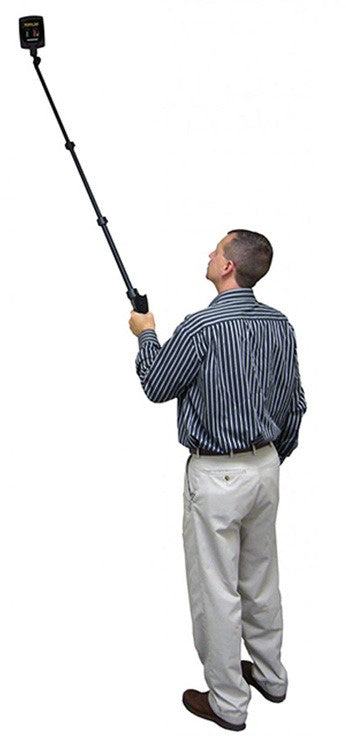

| Extension lengths: 16-51 in (40.6-129.5 cm) Case dimensions: 6.25 in x 14.9 in x 18.5 in (15.9 cm x 37.8 cm x 47.0 cm) ORION 2.4 HX dimensions: 22.4 in x 3.75 in x 3 in (57 cm x 9cm x 7.5 cm) Overall extended length: 58 in (147 cm) ORION 2.4 HX weight with battery: 3 lbs (1.4 kg) Case weight including ORION and accessories: 12 lbs (5.4 kg) HX touchscreen Ingress Protection (IP) rating : IP63 KeypadIP rating: IP64 |
BATTERY |
| Input AC: 100-240 V, 50-60 Hz Run time: >4 hours per battery (typical) Charge time: 2.5 hours per battery Batteries: Lithium ion rechargeable (2 included) The supplied battery pack: RRC Power Solutions Lithium Ion Rechargeable Battery pack Model #RRC2040 |
THERMAL |
| Operating temperature: -10 to 50°C Battery charging temperature: 5 to 37°C Storage temperature: -20 to 60°C Note: extended storage at temperatures above 40°C could degrade battery & OLED display performance and life. |
Accessories
Power
Lithium-ion Rechargeable Battery – 2950mAh
A 2950 milliampere hour lithium-ion battery for the following REI products: ORION Non-Linear Junction Detectors, VPC 2.0 Video Pole Camera, & the VPC 2.0 Deluxe.
Part Number: R-00001
A 2950 milliampere hour lithium-ion battery for the following REI products: ORION Non-Linear Junction Detectors, VPC 2.0 Video Pole Camera, & the VPC 2.0 Deluxe.
Part Number: R-00001
Lithium-ion Smart Battery Charger
The Lithium-ion Smart Battery Charger provides additional charging capabilities to the OSCOR Spectrum Analyzers, TALAN 3.0 Telephone and Line Analyzer, ORION Non-Linear Junction Detectors, & VPC 2.0 Video Pole Camera.
Part Number: 6-00079
The Lithium-ion Smart Battery Charger provides additional charging capabilities to the OSCOR Spectrum Analyzers, TALAN 3.0 Telephone and Line Analyzer, ORION Non-Linear Junction Detectors, & VPC 2.0 Video Pole Camera.
Part Number: 6-00079
